RV solar system DIY

by Denny
(Richard's Landing, ON P0R 1J0)

There is no need to ask others help to install panels on your RV, you may try DIY. I have done it for my RV.

I bought a new RV some days ago,and thinking of installing panels on my camper van.

As you know, we generally use the Z-style aluminum bracket to mount a panel on the roof. We need to drill hole in the roof. It is not a good way.

But at last I have found a good solar panel mount for my RV. It has no need to drill hole now, and is very easy to install. It can be used with
any sized aluminium framed solar panel to provide a secure fixing for vehicles, caravans, boats, etc.

It supports the solar panel at the optimum height above the surface to enable aeration from underneath, ensuring the solar panel functions as efficiently as possible.

I just bought 3 sets of the solar panel brackets, and 500ml Sikaflex-252, then the panels on my RV roof.

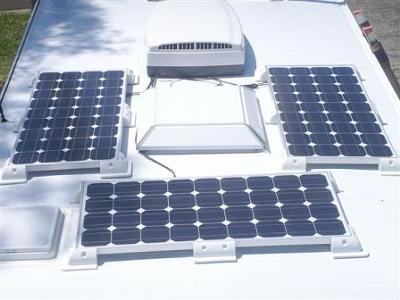

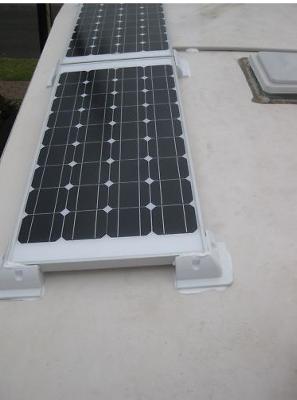

Attached are some of my install photos. Hope you can discuss with me.

Also I'm glad to share the mount supplier website:
http://brightsolar-power.com/index.php/product/view/138.html

Comments for RV solar system DIY

Average Rating

Click here to add your own comments

Jul 21, 2017
Rating

Tiltable mounts? NEW
by: Travis

Does the company you got your mounts from have ones that tilt without drilling holes?

Apr 15, 2017
Rating

Use as supplemental mount NEW
by: Anonymous

I have 2 165 watt panels already mounted with 4 side z- brackets. The 2 panels are mounted on the roof and about 8" from the front of our small 5th wheel. Unfortunately only the rear brackets are screwed into rafters, the fronts are only secured by 1 screw each directly into the tin roof, along with some dicor sealant. Now that it's done I'm feeling like this is a really unsecured situation and would like to supplement these mounts some how. The z-brackets raise the panels 1 and 1/2". How high off the roof will these ABS mounts be? Do you think they would work as supplemental mounts to secure the fronts of the panels?

Mar 06, 2017
Rating

Recommendations NEW
by: Dan

I just bought my solar panels (2 each 100 watt panels). I've been looking at these drill less mounting kits. Are you still satisfied?

Dec 08, 2016
Rating

Trickle charge
by: Anonymous

A solar panel came on our 2002 Adventurer and it trickle charges the house battery. Don't know what size or anything else about it but it works.

Aug 07, 2016
Rating

Mounting kit from Amazon.
by: Anonymous

Check Amazon for ML Solar Drill free Solar panel roof-top corner kit. $28.94 for set of 4.

Apr 13, 2016
Rating

Moveable
by: Kat

Best efficient function of solar panels is that they can be adjusted to the optimum angle to catch solar rays...which means they need to be moveable.

Apr 11, 2016
Rating

Please provide a Seller for these mounts
by: Anonymous

You have provided the link to the manufacturer. I can find no one online to buy these from.
Who actually sells them?

Dec 11, 2015
Rating

supplyer for drill free mounts
by: Anonymous

hears the url to a sorce to get the mounts

http://www.unlimited-solar.com/drill-free-solar-mounting/?sort=priceasc

Oct 28, 2015
Rating

web site for brackets
by: Anonymous

http://brightsolar-power.com/index.php/product/view/138.html

Aug 08, 2015
Rating

solar brackets
by: Barb

where did you get the brackets?

Aug 07, 2015
Rating

How do we get your solar info.
by: Anonymous

Thank u, we are new to rving. Would like do do some dispersed camping, and help others in this process, thank u so much. Tina. Tinagsellsdreams8@gmail.com

Mar 12, 2015
Rating

questions
by: steve

Why are NONE of the above great questions answered? All of which are questions I'm interested in all questions as well. Why post anything then?

Sep 09, 2014
Rating

Request
by: Melinda

Can you share a link to the mounts please?

May 26, 2014
Rating

Re: solar panel installation
by: Amrcn Drifter

Could you please share what the total cost was? And I am also curious about the previous comment, re: battery pack.

Apr 01, 2014
Rating

Our own Solar DIY project
by: Fabie

Cool stuff, my husband also set up our own solar on our caravan. Here is the link to how he did it: http://www.thisisouraustralia.com/installing-solar-system-to-your-caravan/

Mar 22, 2014
Rating

Battery charger?
by: Anonymous

Can a solar panel be used for a battery trickle charge over the winter?
